How to start Pluto

Pluto is a Julia package, which runs on your computer. It start a small local web server, and you can connect to it from your web browser.

Step 0: install Julia and Pluto

Did you already install Julia and Pluto? Take a look at the installation guide.

Step 1: start Julia

First, start Julia. In some cases, you can search for the app “Julia” on your computer and launch it. In other cases, you can open a terminal (search for the app “Terminal”) and type the command julia.

Step 2: start Pluto

In Julia, run this command to start Pluto:

import Pluto
Pluto.run()

Browser session

When Pluto starts running, it automatically opens a new browser tab that connects to http://localhost:1234/, which is the address of the Pluto server. You will see the main menu of Pluto.

The first page you see when you open a new browser tab is the main menu of Pluto. It’s the page that says “Welcome to Pluto”. From here, you can create a new notebook, open an existing notebook, or you can take a look at the featured notebooks, further down the page.

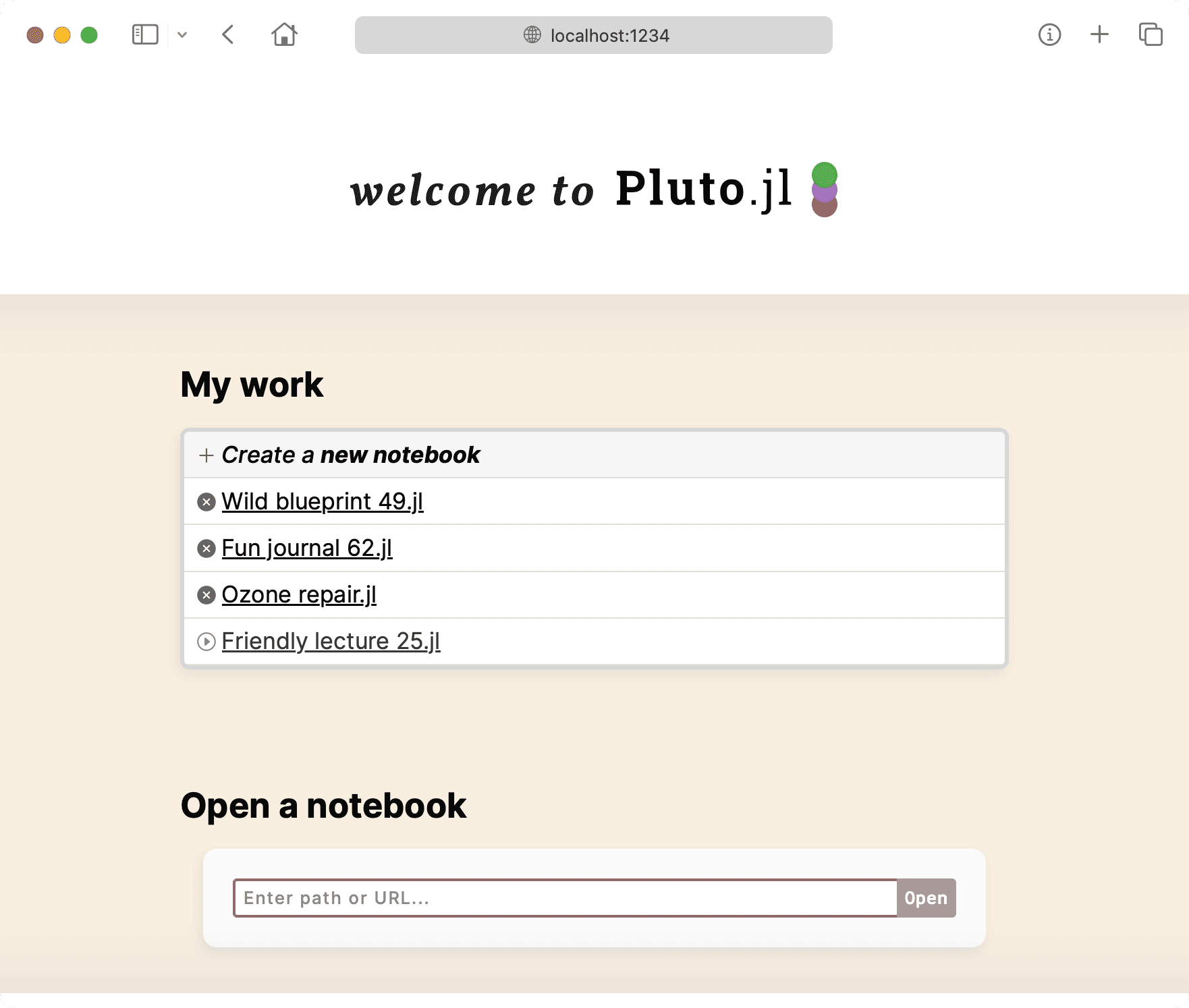

screenshot of the Pluto main menu, showing recent notebooks and a textbox to open a recent notebook

To go back to the main menu from a notebook, you can click the Pluto logo in the top left corner of the browser window.

Tip

Just like on websites, you can open pages in a new tab. For example, you can right click the Pluto logo in the top left corner of the browser window, and select “Open in new tab”. This will open a new tab that is connected to the same Pluto session.

If you open a new tab in your browser, you can also go directly to the Pluto server. Type localhost:1234 in the address bar, and press Enter. You can also bookmark this page for easy access.

Multiple notebooks

Something important to know: each Pluto session (created by running Pluto.run()) can run multiple notebooks at the same time. The notebooks in your Pluto session are managed from the Pluto main menu. In the screenshot above, you see the Pluto main menu, with 3 notebooks currently running.

If you use the main menu to create a new notebook or open a notebook, it will be added to the session. If you go back to the main menu, you can add more notebooks to the session.

How to stop Pluto

To stop Pluto, you can press Ctrl+C in the terminal where you started Pluto. You might need to press Ctrl+C multiple times. This will stop the Pluto server, and all notebooks in the session will shut down.

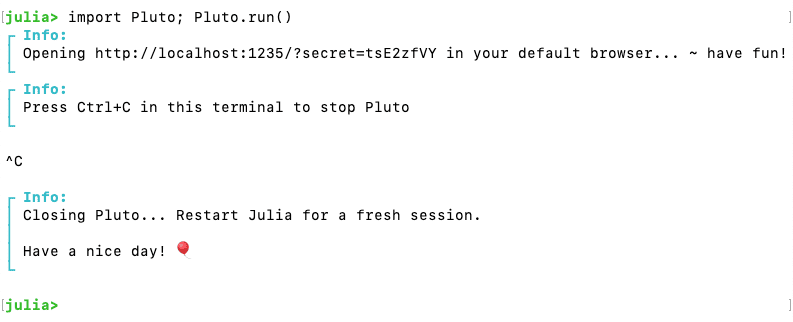

screenshot of the terminal, showing the command `Ctrl+C`

Advanced: Mirror view

Pluto has a special feature – you can open the same notebook in two different browser windows, and they will stay synchronized. This is useful if you are working with two parts of a notebook at the same time. For example, you can change your analysis code (at the bottom of the notebook) in one window, and you can watch the plots (at the top of the notebook) in a second window.

To use mirror view, you first open a notebook, and you copy the URL of the notebook from the address bar. This will look like http://localhost:1234/edit?id=0ec9caa2-3fa7-11f0-3e46-3bcef32ce8e3. Then open a new browser window, and paste the URL in the address bar. Now you have two windows that are connected to the same notebook, and they will stay synchronized.

Limitation: no unsaved edits

Currently, unsaved edits (code changes before your press Shift+Enter or Save) are not synced between the two windows. This is usually not an issue, but it is possible to lose work if both sides are editing the same cell – submitting on one side will overwrite the other side. The other side can still use Ctrl+Z to get their old code back. See this PR for more details

Tip

You can also use the “Mirror view” feature to collaborate with someone else on another computer, which can be really fun! We recommend a service like bore.pub to share the notebook with someone else, and don’t change Pluto’s security settings. Because – be careful! Someone with access to the notebook, has complete access to your computer. They can install and run programs without your approval.

We have used this feature to collaborate on notebooks, and we found it quite important to have good communication using an audio call. This also avoids editing the same cell.

Advanced: Multiple Pluto sessions

You can start Pluto multiple times in parallel (for example: on two different Julia versions). In this case, each Pluto server will find the first available port. Usually, the first server will find port 1234, the second server will find port 1235, and so on.

This means that you can open two browser windows, and connect to the two different Pluto servers in parallel:

http://localhost:1234/
http://localhost:1235/

Usually, this is not super useful. If you find yourself on port 1235 by accident, try shutting down all Pluto/Julia processes and starting again.

Advanced: Remote access with SSH

If the server (where Pluto will run) and the client (the machine whose browser will use Pluto) are on the same network then set the host to 0.0.0.0 while launching Pluto (e.g Pluto.run(host="0.0.0.0")). An example use case is if you have a headless raspberry pi and a laptop connected to the same wi-fi network in your home. You can run Pluto on the raspberry-pi and use your laptop’s browser for development.

However, if the server is remote and has a public ip you need to set up an SSH tunnel. First, log in to your server using SSH and start a Pluto server. Then open a local terminal on your own computer and type:

ssh user@ipaddress -N -L 1234:localhost:1234

with user and ipaddress filled in accordingly. You can then go to http://localhost:1234/ on your own computer to get started! For more info and instructions for Windows, see this guide. This can come in handy if your server is on a cloud service such as AWS or Azure. The latter method can be used in the former case too provided an ssh client is available and enabled on both machines.
